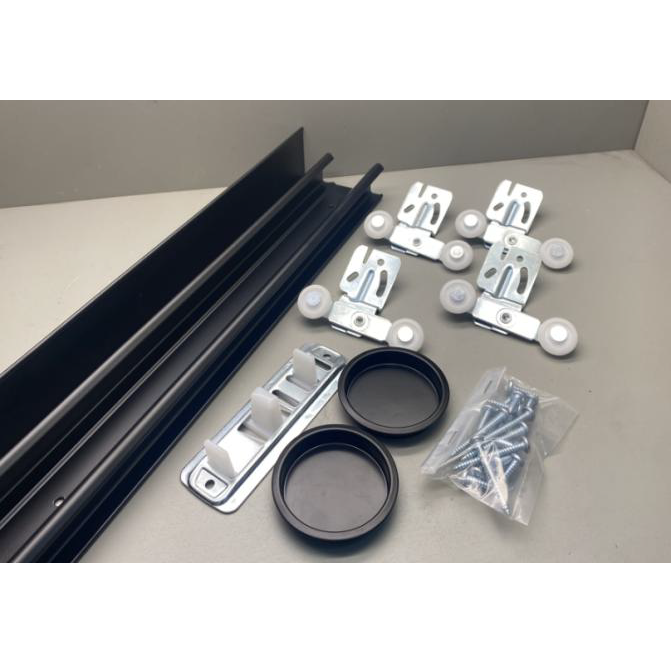

Bypass Hardware Kit: Series 2200F with Black Fascia Track
Black Bypass Kit 2200F-48: for two 24" doors in a 48" opening
$37.00
Sale price
$37.00
Regular price
Skip to product information
In stock
Bypass Hardware Kit: Series 2200F with Black Fascia Track
$37.00
Sale price
$37.00
Regular price
Lead Time:
Need more than the quantity shown? Allow 4 weeks.
2200F Bypass Hardware with Black Fascia
-
For 1-3/8" thick doors
-
For doors weighing up to 75 lbs. each.
-
Finished Opening Height = Door + 1-3/4".
- Finished Opening Width -2 Doors: 2 x door width - 1", 3 Doors: 3 x door width - 1", 4 Doors: 4 x door width - 2"
HANGER
Hangers include 7/8" diameter molded nylon machine turned wheels with three-point locking plates. Hangers adjust without removing or relocating screws.
Twin wheel hangers are tested for doors weighing up to 75 lbs. each.
TRACK -Black Aluminum 3-1/16" wide; Fascia Height 1-3/4", track height 1-1/16"
Convex track rails provide low roll resistance and are designed to prevent doors from jumping track.
ADJUSTABLE DOOR GUIDES
Nylon guideposts are 1" high and swivel to allow warped doors to operate without binding. Door guide adjusts laterally for quick plumbing.
